Mercedes Mileage Blocker: CAN Bus Architecture, Operation, and Fitting Guide

Your Mercedes doesn't actually store its mileage inside the instrument cluster. Instead, modern architectures distribute distance telemetry across dozens of control units, from the Central Gateway to the electronic ignition switch. If you're preparing a car for dynamometer validation or closed-circuit testing, worrying about corrupting an MBUX display or seeing figures jump forward unexpectedly is entirely reasonable. A properly engineered mercedes mileage blocker resolves this tension by filtering communication packets at the physical bus layer before mismatched records propagate across the vehicle.

You'll discover exactly how these modules intercept speed data across CAN networks without generating fault codes or desynchronising onboard computers. We've seen firsthand how easily improper tools disrupt central gateway records. That's why we break down the physical fitting process, showing you how to install a dedicated harness without splicing factory wires or damaging interior trim. Here is how message filtering works and how to match the right hardware to your chassis generation.

What Is a Mercedes Mileage Blocker and How Does It Operate?

A mercedes mileage blocker is a dedicated hardware module installed directly behind the digital instrument cluster. Functioning as a high-speed firewall, it intercepts real-time speed messages passing across the physical bus lines. It halts distance accumulation while letting your active speedometer continue displaying the correct road speed. In our business, we see these units deployed primarily for closed-track validation, dynamometer tuning, and aerodynamic laboratory testing where rolling road miles must not alter baseline diagnostic logs.

To see how an inline module fits behind the dash without altering OEM looms, watch this practical overview:

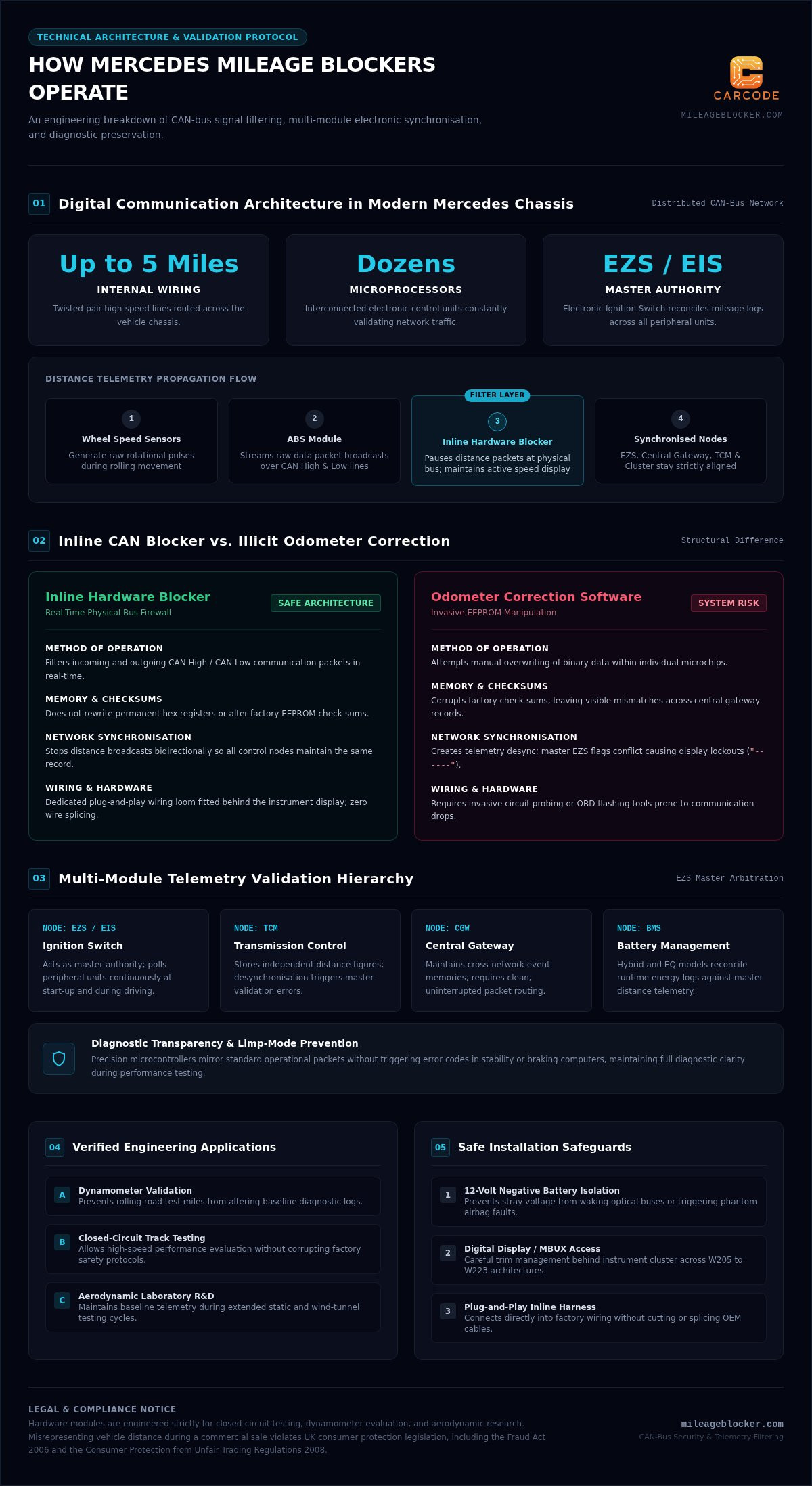

The Digital Communication Architecture of Modern Mercedes Models

Modern Mercedes chassis use a complex Controller Area Network (CAN bus) to broadcast real-time telemetry across twisted-pair lines. A modern vehicle can contain up to 5 miles of internal wiring connecting dozens of microprocessors. When the car rolls forward, wheel speed sensors stream pulses through the ABS module. This data broadcasts instantly to the instrument cluster and the Electronic Ignition Switch (EIS/EZS). Software hacks cannot reliably stop this traffic because raw telemetry circulates uninterrupted across secondary control nodes.

Mileage Blocker Hardware vs Odometer Correction: The Critical Difference

Legitimate hardware differs entirely from illicit mileage correction tools. Correction software attempts an invasive rewrite of vehicle EEPROM chips, which corrupts factory check-sums and leaves visible discrepancies across central gateway memories. In contrast, an inline blocker acts as a real-time message filter without rewriting permanent hex registers. If you need step-by-step guidance on fitting these plug-and-play looms securely, follow our dedicated installation process to maintain absolute system integrity.

Multi-Module Mileage Synchronisation Across Mercedes Electronic Control Units

Every modern Mercedes model operates a strict validation hierarchy between its control modules. When you drive, the Electronic Ignition Switch (EZS) acts as the master authority, continuously reconciling distance logs against the Transmission Control Module (TCM), the Central Gateway, and the battery management systems in hybrid or EQ models. Poorly coded hardware fails to manage this constant handoff. If an unverified filter drops communication or allows one module to advance while restricting another, the system detects a mismatch. The instrument display promptly locks out or replaces the mileage digits with blank dashes.

The Role of the EZS Module in Mileage Verification

During start-up and road operation, the EZS module polls peripheral computers for verified run-time figures. If a tool manipulates values inside the cluster without addressing the transmission records, the master processor flags a conflict. A custom-engineered Mercedes mileage blocker addresses this exact issue. By filtering CAN high and CAN low frames bidirectionally, it ensures that distance broadcast packets stop evenly across the network, keeping all onboard nodes aligned at the exact same value.

Preserving Diagnostic Integrity During Performance Testing

Unfiltered speed signal disruptions routinely trigger error codes in stability and braking computers. High-grade modules utilise precision microcontrollers running proprietary software that mirrors standard operational packets. This architecture ensures complete transparency during diagnostic scans, letting dynamometer operators complete performance cycles without triggering false limp-mode sequences or check-engine warnings.

Operating these tools requires strict adherence to ethical standards. While testing off-road or on dyno stands is standard industry practice, misrepresenting total distance during a commercial sale violates UK consumer protection laws, including the Fraud Act 2006 and the Consumer Protection from Unfair Trading Regulations 2008. If you have questions about how these modules behave alongside your specific diagnostic equipment, check our answers in the comprehensive mileage blocker FAQ on MileageBlocker.com.

Step-by-Step Installation: Fitting a Mileage Stopper to Your Mercedes

Fitting hardware into a modern Mercedes cabin requires patience and careful panel management. Disconnect your negative 12-volt battery terminal before loosening interior trim. This precaution isolates the vehicle network, preventing stray voltage from waking sensitive optical buses or generating phantom airbag faults while you work around the steering column.

Dashboard Preparation and Instrument Cluster Removal

Working on cabins from the W205 C-Class through to newer W223 architectures demands non-marring nylon pry bars. Metal levers will gouge piano lacquer and soft-touch dashboards:

• Insert a broad nylon wedge beneath the cluster surround bezel to disengage the retaining clips evenly.
• Unscrew the exposed Torx T20 fasteners holding the digital display binnacle to the dash skeleton.
• Ease the display forward, depress the harness lock tab, and swing the mechanical lever arm backward to release the multi-pin connector cleanly.

Module Integration and Initial Configuration

Position your plug-and-play harness directly between the extracted cluster and the factory vehicle loom. High-grade modules require zero wire cutting or solder splices; the OEM-style connectors seat with a distinct mechanical click. Seat the inline mercedes mileage blocker snugly behind the dash frame using automotive fleece tape to eliminate cabin rattles during test driving.

Once you reconnect the battery, power the ignition to verify communication. Hardware profiles toggle cleanly using steering wheel buttons, often by holding the telephone hang-up or return key for ten seconds until the indicator flashes. These diagnostic modules are designed strictly for laboratory dynamometer trials and tuning runs; deceptive manipulation on public roads breaches consumer regulations, as outlined under global Odometer Fraud Laws. For detailed chassis schematics, consult our step-by-step installation instructions on MileageBlocker.com, or book our mobile technicians to handle dashboard integration for you.

Selecting Reliable Hardware: Quality Standards, Compatibility, and Fitting Services

Thermal stability dictates whether an inline circuit board survives inside an enclosed dashboard cavity. Severe cabin heat and continuous chassis vibrations degrade uncertified solder joints over time. A reliable mercedes mileage blocker relies on automotive-grade microcontrollers rated for wide operating temperatures. In our business, we test modules under sustained dynamometer loads to guarantee zero signal drift. These components process dense multiplexed traffic cleanly, maintaining software stability through the latest 2026 MBUX infotainment and digital cluster firmware revisions. To match a verified unit to your exact chassis generation, consult our dedicated car search platform.

Evaluating Factory Connectors Against Universal Splice Wiring

Splicing into factory wiring is a reckless gamble on high-end German vehicles. Cutting twisted-pair communication cables alters physical line resistance, triggering stubborn communication faults across safety systems and degrading resale value. Superior hardware relies entirely on precision-moulded connectors built to original equipment specifications. These OEM-grade plugs click directly between the cluster and the vehicle loom, ensuring the installation remains completely reversible without leaving damaged wire sheathing behind.

When to Choose a Professional Mobile Fitting Service

While standard dashboard binnacles are relatively straightforward to access, sprawling dual-screen and Hyperscreen layouts in high-end AMG or Mercedes-Maybach models demand exceptional care. A slipped pry tool against hand-stitched nappa leather or fragile lacquer creates expensive cosmetic damage in seconds. If you prefer to bypass interior disassembly entirely, our technicians can complete the hardware integration cleanly on your driveway. You can arrange an appointment directly via our fitting inquiry desk for specialist support.

Maintain Total Diagnostic Control on Your Next Build

Operating modern German machinery during testing cycles requires absolute hardware precision. Instead of risking central gateway memory corruption with crude rewrites, installing a dedicated mercedes mileage blocker provides clean, real-time message filtering. Your instrument cluster and transmission units remain fully synchronised, leaving zero digital footprints or communication errors behind when dyno runs conclude. Choosing automotive-grade microcontrollers paired with OEM-matched looms ensures your factory wiring remains pristine.

Before beginning your next track assessment, check your instrument cluster version and verify the exact harness requirements for your cabin. If you want direct hardware integration without disassembling delicate dashboard trims yourself, our nationwide team can handle the entire setup on site. Speak with our technical specialists to arrange your fitting, and ensure your vehicle testing proceeds with unmatched diagnostic stability.

Frequently Asked Questions

Will installing a mileage blocker cause dash warning lights to appear on my Mercedes?

No, a properly engineered mercedes mileage blocker will not trigger warning lights or error codes on your dashboard. High-grade modules maintain constant, bidirectional packet communication across the interior network. Because the microcontroller filters distance parameters without interrupting essential engine, transmission, or ABS safety signals, your instrument binnacle operates normally without check-engine warnings or stability control alerts.

Does a mileage blocker alter the existing mileage already displayed on the odometer?

No, the hardware cannot rewind, edit, or manipulate figures already saved in your vehicle. Unlike invasive mileage correction software, this tool simply freezes new distance accumulation from logging across internal microprocessors during testing sessions. When you switch off or remove the unit, the odometer resumes logging normally from the exact figure displayed prior to your test run.

How do I switch between different operational modes on my Mercedes mileage blocker?

You change modes directly using the factory steering wheel buttons or an integrated mobile application on supported models. Typically, pressing and holding the telephone hang-up or return button for roughly ten seconds cycles through operational profiles. The hazard flashers or instrument cluster indicator flashes briefly to confirm your chosen mode, allowing quick adjustment without extracting dashboard panels.

Can onboard diagnostic scanners at inspection centres detect the mileage blocker hardware?

Standard diagnostic scanners running dealership-level software cannot detect the module during routine evaluations. High-performance modules process network frames cleanly, leaving no communication mismatch or fault codes behind in secondary memories like the Central Gateway. All electronic control units report identical synchronised figures, ensuring full system transparency while running dynamometer or closed-circuit diagnostic tests.

Is it possible to remove the module completely without leaving traces in the wiring?

Yes, removing the module is completely reversible and leaves no physical trace. Because our kits use OEM-grade male and female harnesses that plug directly into the instrument cluster connector, no original wiring is ever stripped, cut, or soldered. Simply unplug the unit, reconnect your factory loom back into the binnacle, and your cabin electronics return entirely to factory specifications.
