BMW i4 Mileage Freezer Installation: iDrive 8 Guide

The BMW i4 curved display is a £2,000 masterpiece of automotive engineering, and for most owners, the idea of dismantling it feels like performing open-heart surgery on a robot. It’s understandable why you might feel cautious. The iDrive 8 system is incredibly sensitive. One wrong move with a pry tool could lead to permanent scratches or a dashboard lit up with persistent error codes. We’ve seen many enthusiasts hesitate because the complex CAN bus wiring in the G26 chassis seems impenetrable.

However, a professional BMW i4 mileage freezer installation doesn't have to be a high-stakes gamble. By following a structured approach, you can safely fit a hardware module behind the screen without cutting a single factory wire. This article provides a technical walkthrough to help you achieve a completely hidden setup that’s controllable via your steering wheel. We’ll examine the specific connection points and configuration steps needed to ensure your vehicle remains electronically pristine during authorised testing.

Key Takeaways

• Identify your specific G26 i4 model and iDrive version to ensure hardware compatibility before starting. Using non-marring trim tools is essential to protect the BMW's Sensatec dashboard from accidental damage.
• Safely access the curved display by removing the lower decorative trim and the two primary Torx bolts. This allows you to tilt the screen forward without stressing the factory wiring looms.
• Complete a professional bmw i4 mileage freezer installation using plug-and-play connectors that require no soldering or permanent alterations. Listen for the audible click to verify a vibration-proof connection with the vehicle's CAN bus system.
• Configure the device using the factory 'BC' button on the indicator stalk to cycle through available modes. You can confirm active operation by watching the indicator light or needle movement on the instrument cluster.

Preparation and Tools for BMW i4 Mileage Freezer Installation

Before starting your BMW i4 mileage freezer installation, precision is your best friend. The G26 i4 is a high-voltage environment where software and hardware must align perfectly. You must verify if your vehicle uses iDrive 8.0 or the newer 8.5 update, typically found in models produced after July 2023. Software versions like "07/2025" or "11.2024.40" indicate specific CAN bus protocols. It's essential that your hardware firmware matches the 2023-2026 electronic architecture to prevent "tamper" flags or communication errors between modules.

Powering down the vehicle completely is a non-negotiable step. We recommend waiting at least 15 minutes after switching off the ignition and moving the key fob at least 10 metres away. This allows the various control units to enter a deep sleep state. Skipping this wait time often results in "phantom" error codes that require a diagnostic tool to clear. While our devices are engineered for off-road testing, users must remain aware of Odometer fraud laws in the UK. Under the Fraud Act 2006, misrepresenting mileage during a vehicle sale is illegal. Proper preparation ensures you stay on the right side of technical and legal boundaries.

Essential Tool Kit for G26 Interiors

Protecting the expensive Sensatec or leather dashboard requires the correct equipment. Metal tools will leave permanent scars on the BMW's soft-touch plastics. You'll need automotive-grade nylon pry bars to safely release the clips holding the trim. . We also suggest keeping several clean microfibre cloths nearby. Drape these over the steering column to protect the curved glass from scratches during the bmw i4 mileage freezer installation. If you are hesitant about the physical disassembly, our mileage blocker installation resources offer additional support for various BMW configurations.

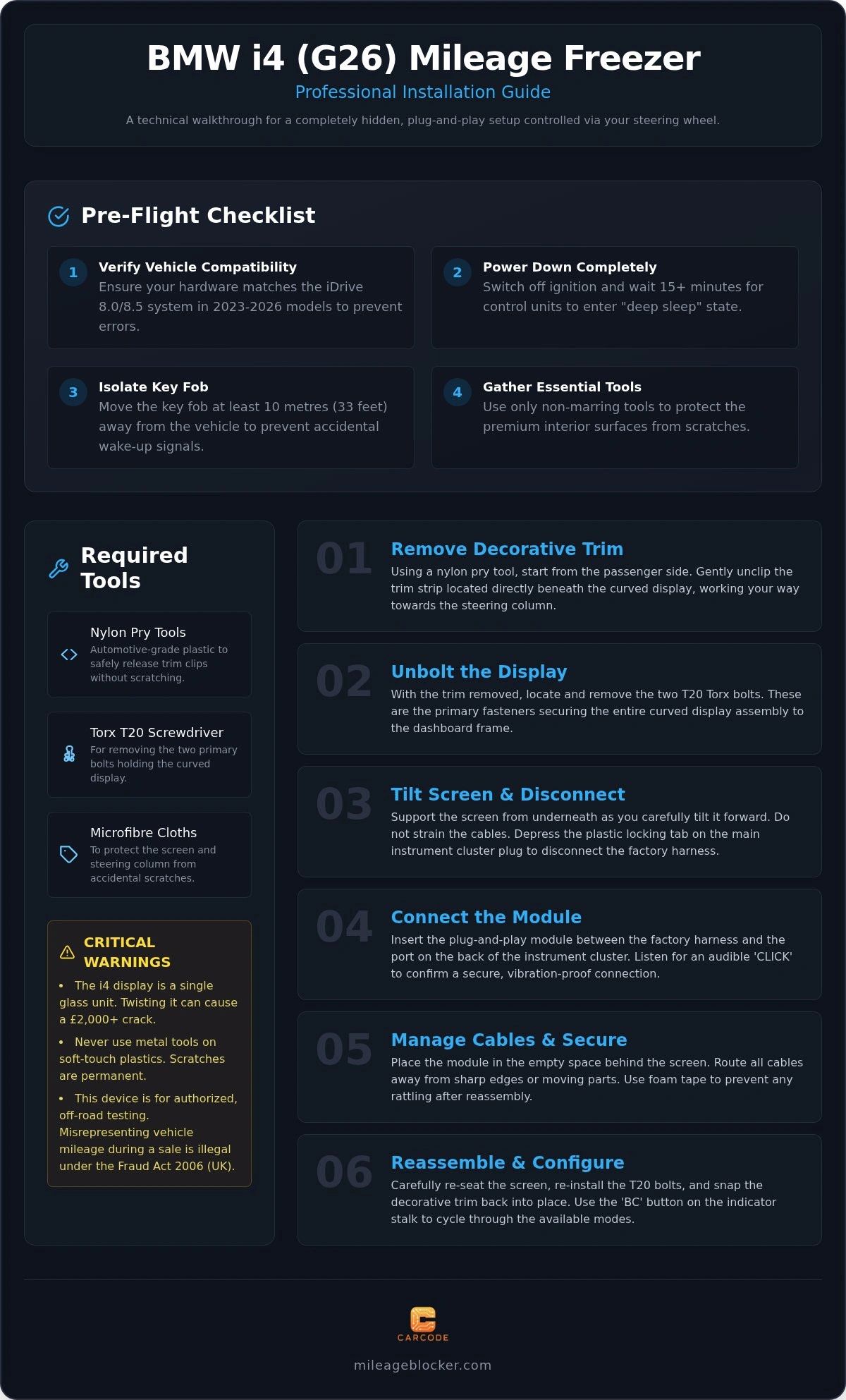

Accessing the iDrive 8 Curved Display: A Step-by-Step Guide

The physical phase of your bmw i4 mileage freezer installation starts with the decorative trim strip located directly beneath the curved display. Using your nylon pry tool, start from the passenger side and gently unclip the piece moving towards the steering column. These clips are exceptionally tight. You'll need to apply consistent, even pressure to avoid snapping the plastic tabs. This reveals the structural mounting points. You'll find two primary T20 Torx bolts securing the screen assembly to the dashboard frame. Once these are removed, the entire unit becomes mobile, but it's not yet free from the dash.

Carefully tilt the display forward. It's heavy and awkward. You must avoid straining the high-bandwidth data cables at the rear. These silver and blue connectors handle the massive data throughput for the iDrive 8 interface. While these devices are legal for specific testing scenarios, it's crucial to understand that misrepresenting a vehicle's mileage history is a serious offence under UK fraud legislation. Identifying the main instrument cluster plug is your goal. It's the largest multi-pin connector located on the back of the driver's side panel, providing the primary integration point for the freezer.

Handling the BMW Curved Display Safely

The i4’s display is a single, continuous glass unit. Any torque or twisting applied to the frame can crack the panel instantly, leading to a replacement cost exceeding £2,000. Always support the screen from underneath as you pivot it. When you reach the wiring, disconnect the main harness by firmly depressing the plastic locking tab on the connector housing. Never pull directly on the loom itself. If you're uncomfortable handling such a fragile component, consider booking our professional fitting service to guarantee a damage-free result.

Connecting the Plug-and-Play Module to the G26 System

Once you've isolated the cluster plug, the physical integration for your bmw i4 mileage freezer installation is straightforward. You simply insert the module between the factory harness and the instrument cluster port. Listen for the distinct 'click' that confirms a secure, vibration-proof connection with the OEM-style plugs. Without this positive lock, the module could loosen over time. This leads to intermittent dash errors or a total loss of display functionality. Unlike some nefarious controller area network (CAN bus) dongles that require splicing, our hardware uses high-grade, original-style connectors for a seamless bridge.

Cable management is vital for a long-term, discreet setup. Position the module in the void directly behind the screen assembly. There's sufficient space here, but you must ensure the unit doesn't interfere with the display's re-seating points. Verify that all cables are routed away from sharp metal dashboard supports or the steering column's moving parts. Friction against metal edges can eventually wear through wire insulation. Our hardware features heat-resistant cables, which is a critical advantage given the thermal output of the i4's high-resolution screen. Secure the module with a small piece of foam tape to prevent internal rattling once the dash is reassembled.

Professional Fitting vs. DIY

While the BMW i4 mileage freezer installation is a plug-and-play process, the G26 dashboard is complex. It's a tight environment. One snapped clip or a rattling cable behind the curved display can be a source of constant irritation. For owners who prefer a guaranteed, factory-quality finish, we recommend our mileage blocker fitting service. Our technicians handle the delicate disassembly and ensure the hardware is perfectly insulated against vibration. If you're ready to secure your setup, contact our technical team today to book your professional fitting slot.

Configuration and Testing Your i4 Mileage Stopper

After completing your bmw i4 mileage freezer installation, the final stage is activating and calibrating the module. Power on the i4 by pressing the Start/Stop button. To cycle through the operational modes, you'll use the 'BC' button located on the end of the indicator stalk. Hold this button for approximately 10 seconds to initiate the sequence. You'll receive visual confirmation through the instrument cluster. Usually, this appears as a specific flash of the indicator lights or a momentary movement of the speedometer needle to a designated value. This feedback confirms the module has successfully intercepted the CAN bus signal.

Testing speedometer functionality is a critical step before concluding the process. In high-quality hardware, the speedometer remains fully active even while the odometer is frozen. We recommend a short test drive on a private track or a dynamometer to verify this. During this test, observe the range and consumption figures on the iDrive 8 screen. They should continue to update based on your driving style and battery state. If you have questions about specific G26 software versions, our mileage blocker FAQ provides detailed troubleshooting for the latest BMW firmware updates.

Understanding Mode Logic in an EV

Electric vehicles like the i4 calculate remaining range using a sophisticated estimator that balances current battery voltage against historical distance data. Our modules offer multiple modes to suit specific testing requirements. Mode 1 typically stops 100% of mileage accumulation. Other modes may allow for a reduced percentage, such as 10% or 30%, which can be useful for maintaining the internal logic of the range estimator during long-duration tests. If the vehicle's efficiency metrics (miles per kWh) appear erratic, simply toggle to a different mode using the stalk buttons. This ensures the bmw i4 mileage freezer installation provides accurate data for your authorised use cases without triggering system alerts.

Securing Your i4 Performance Testing

Successfully completing a bmw i4 mileage freezer installation requires a blend of technical patience and the right hardware. You've seen how critical it is to match the device firmware to your specific iDrive 8.5 software version. Protecting the curved glass display and ensuring vibration-proof cable routing are the foundations of a professional-grade setup. Once configured via the 'BC' button, the system provides a discreet way to manage mileage accumulation during authorised vehicle evaluations. If you'd rather avoid the risks of DIY disassembly, our specialist installers for iDrive 8 and 8.5 systems are ready to help. We offer a discreet UK-wide mobile fitting service using high-grade components specifically designed for German EV architecture.

Book a professional BMW i4 installation with our expert team to ensure your vehicle's sophisticated electronics remain in safe hands. Your G26 deserves the highest standard of technical care.

Frequently Asked Questions

Will installing a mileage freezer on my BMW i4 cause a permanent check engine light?

No, a properly fitted module won't trigger a permanent check engine light or dashboard warning. The hardware is programmed to intercept specific data packets on the CAN bus without disrupting the vehicle's diagnostic protocols. If you follow the correct power-down sequence mentioned earlier, the system won't register any communication gaps. This ensures the dashboard remains clear of error messages during your authorised testing sessions.

Can the iDrive 8.5 software update detect the presence of the mileage blocker?

High-grade hardware is designed to be invisible to iDrive 8.5 software updates and dealer diagnostic tools. The device doesn't modify the vehicle's original software or permanent memory modules. It simply filters data in real-time. Because it uses original-style connectors and heat-resistant cables, it functions as a transparent bridge within the electronic architecture, leaving no digital footprint for the system to flag.

Does the speedometer still work accurately while the mileage is frozen on the i4?

Yes, the speedometer continues to function accurately while the mileage is frozen. Unlike older, less sophisticated devices, this professional bmw i4 mileage freezer installation ensures that your real-time driving data remains visible. You can monitor your speed and battery consumption figures as normal. This feature is vital for maintaining safety and control while conducting vehicle evaluations on private tracks or dynamometers.

Is it possible to remove the device without leaving physical traces in the dashboard?

You can remove the device at any time without leaving any physical evidence behind. Since the system uses a plug-and-play design, there's no need to cut, splice, or solder any factory wiring. Once the module is unplugged and the original harness is reconnected, the dashboard returns to its factory state. Using non-marring tools during the initial process prevents any visible damage to the trim.

Do I need to recode the car's ECU after fitting the mileage stopper?

No recoding or ECU remapping is required after fitting the mileage stopper. The device is a standalone hardware solution that works immediately upon connection. It doesn't alter the car's core programming, so you won't need to visit a specialist for software adjustments. This makes the bmw i4 mileage freezer installation a completely reversible modification that respects the integrity of the vehicle's sophisticated G26 electronic control systems.
